PPT SERIES

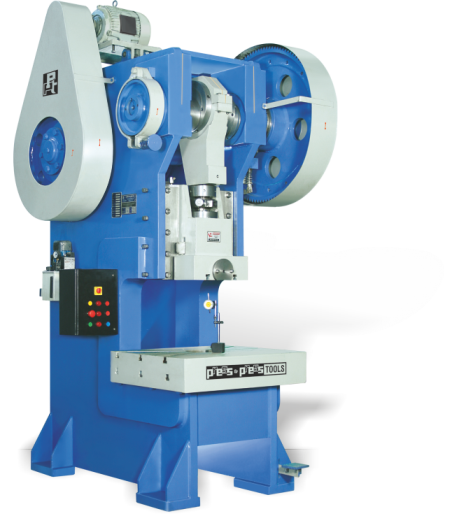

Super Rigid Open Back Inclinable / Non-Inclinable Mechanical Press

mp1
mp2 mp4

FEATURES

Inclinable or ‘C’ frame presses designs are convenient model for various applications, for easy handling of material enabling an individual to operate the machine independently and auto feed can also be provided for increased production. The advantage on inclining the machine to the back is that the material falls with weight of gravity itself which allows easy low cost workability with smooth handling of component and scrap.

The design as such ensures toughness to bear excessive jerks & load thus eliminating chances of any deflection during operation, besides box type slide gives additional grip for self alignment & accuracy plus strengthening structure of frame.
Design of four side gib ram with ram hole & ‘T’ slots gives additional gripping for self alignment for longer life eliminating chances of wear and tear of punch and die ends.


Standard Features

  • Knock-out bar stands provided for top ejection of material conveniently adjustable from left & right.
  • Reachard system for quick & easier setting of dies from pressure screw has greater smoothness.
  • For convenient setting of various die additional bed plate stands provided with center hole as per requirement and ‘T’ slot.
  • Jack for inclining the machine is provided to bear load & easy operation to allow the matter to fall at the back.
  • High quality double & hardened rolling key.
  • The continued research and development of Press & Press Tools goes a long way to strengthen more and more confidence in our presses.

Optional Features

  • Auto Lubrication pump.
  • Stroke length and Shut height other then the standard can be provided as per requirement.
  • Electric stroke counter.
  • ‘T’ slot size as per requirement in slide & bed plate

SPECIFICATIONS

MODEL PPH-20 PPH-30 PPH-40 PPH-50 PPH-75 PPH-100 PPH-150 PPH-200
Capacity at before BDC Ton 20 30 40 50 75 100 150 200
Bed to Ram mm 270 270 280 320 350 440 490 500
Throat mm 150 180 200 220 245 280 300 355
Bed Size mm 480*380 560*420 585*465 630*555 760*560 800*600 900*700 1120*710
Bed Plate Thickness mm 60 70 75 75 80 90 100 120
Strock Length mm 0 to 60 0 to 60 0 to 70 1 to 80 1 to 90 1 to 100 2 to 120 2 to 125
Crank Shaft Dia mm 108 121 130 145 164 175 210 240
Gear Dia mm 406 510 561 612.50 757.50 865 900 1100
Hole in RAM mm 30 35 40 50 60 70 80 90
No. of Strokes minutes 65 60 50 50 45 40 35 30
Motor HP/RPM 2/1440 3/1440 3/1440 5/1440 7/1440 10/1440 15/1440 20/1440
Approx Weight kg 850 1250 1800 2750 3800 5100 6500 7500
